Wood Crafts CNC Wood Lathe
Overview

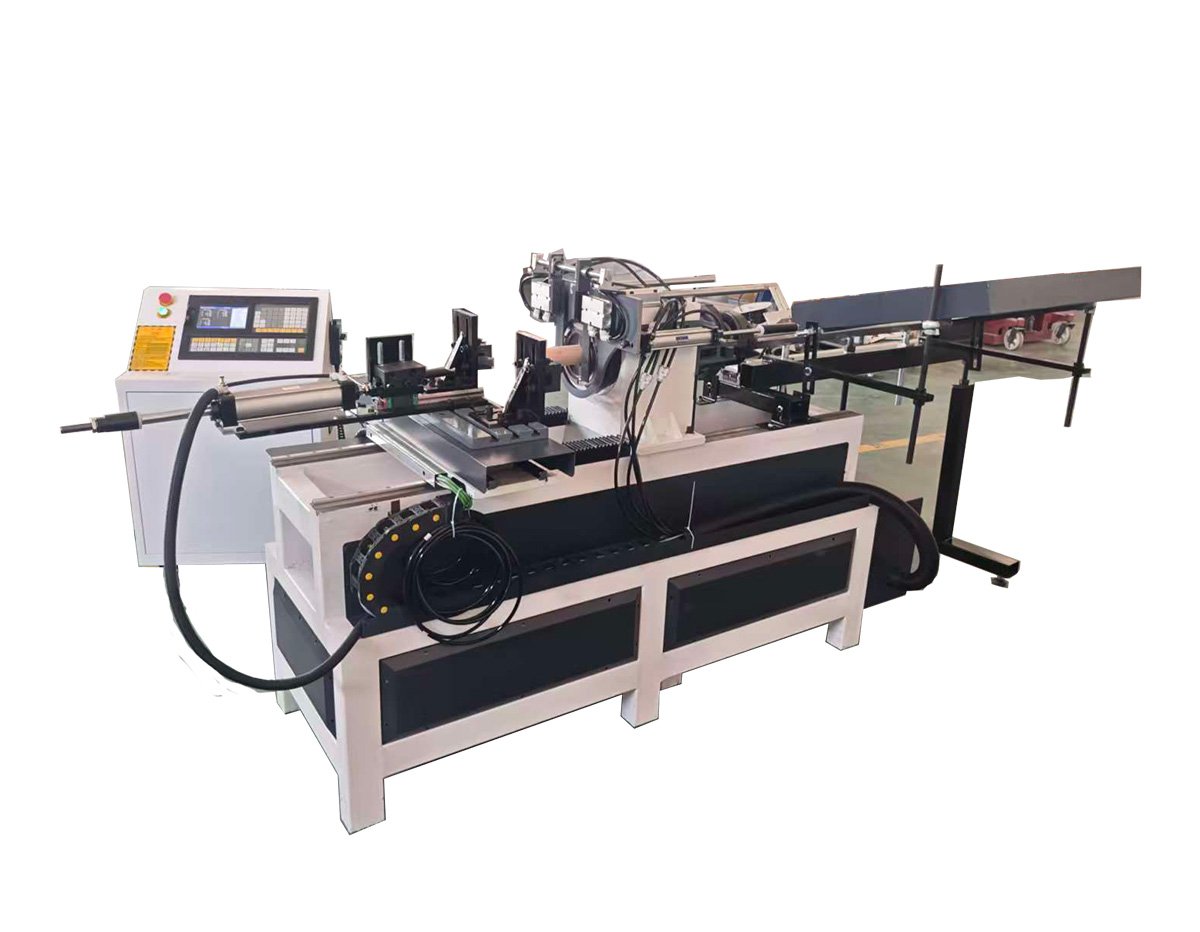

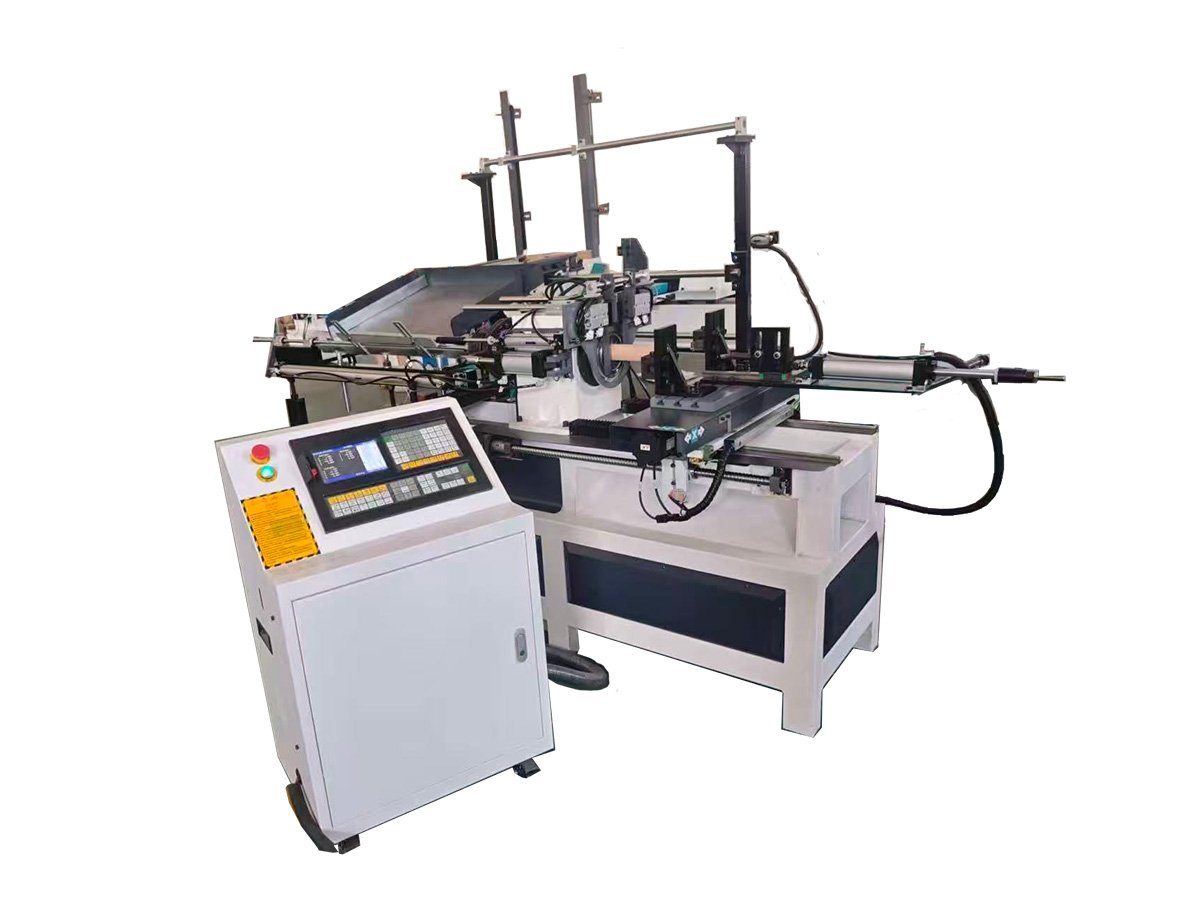

The WOOD CRAFTS CNC Wood Lathe V-6080M is a versatile and reliable turning solution designed for small to medium wooden workpieces such as furniture legs, craft columns, bowls, cups, and decorative wood products. With a max turning diameter of 60mm and length up to 800mm, it is ideal for precision woodworking and batch production.
Equipped with a 3kW high-performance spindle, HIWIN linear guide rails, and a YAKO stepper motor system, the machine delivers stable operation, high accuracy, and long-lasting durability. The pneumatic loading system ensures efficient material handling, while the GXK 1000TC English control system provides user-friendly operation.
This model is built with a rigid cast-iron structure and vibration-resistant design, ensuring consistent precision and smooth surface finishes. The multi-size chuck set and included cutting, drilling, and turning tools make it a complete solution for a wide range of woodworking applications.
The V-6080M is an excellent choice for workshops, craft manufacturers, and furniture makers seeking a cost-effective, easy-to-use, and productive CNC wood lathe.
Parameters
| Model | V-6080M |
|---|---|
| Max. Holding Diameter | 60 mm |
| Max. Holding Length | 800 mm |
| Linear Guide Rail | HIWIN H20 with rail and blocks |
| Driver | YAKO 2608 stepper motor |
| Transmission | Ball screw rod 2510 & 2505, double-bearing support on both ends |
| Machine Body | Equipped with bottom screw legs for ground fixation |
| Loading System | Pneumatic back-loading system |
| Controller | GXK 1000TC (English version) |
| Sanding Brush | 550 W |
| Turning Spindle Power | 3 kW |
| Max. Turning Speed | 1500 RPM |
| Total Power | 5 kW |
| Chuck Sizes | 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 80 mm (1 piece each) |
| Tools Included | Turning tools, cutting tools, drilling tools (1 piece each) |
| Voltage | 380V, 3 Phase |
