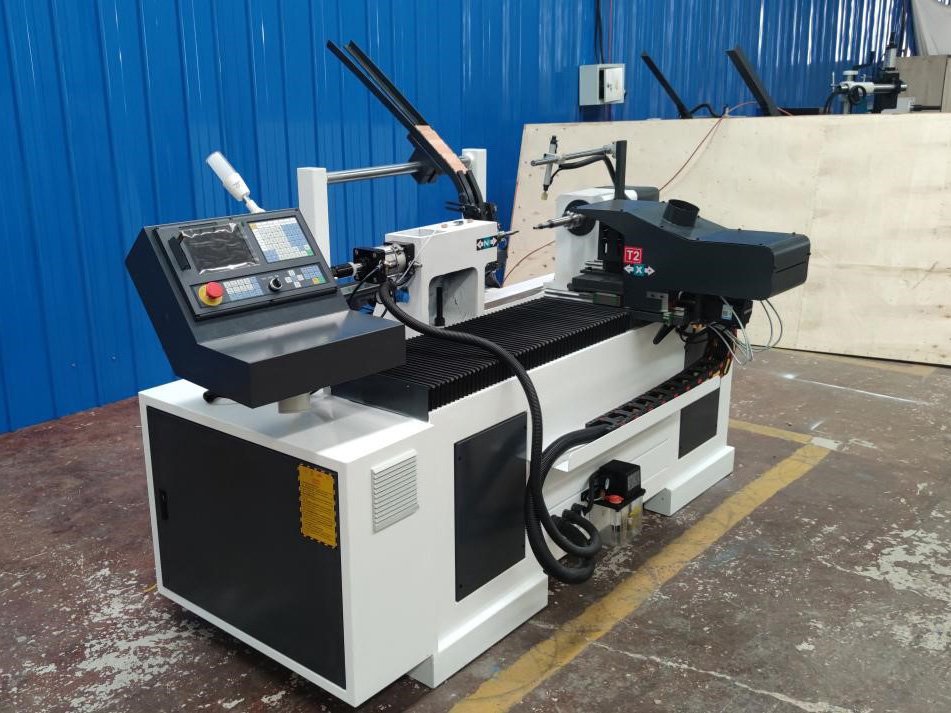

High speed CNC turning lathe V-1020S
Product Introduction
The V-1020S High-Speed CNC Turning Lathe is a fully automatic woodworking lathe designed for precision, efficiency, and versatility. This machine integrates rough knives, fine knives, and irregular knives, allowing it to process a wide variety of solid wood furniture and cylindrical components.
It is ideal for creating items such as dining table legs, chair legs, furniture accessories, and solid wood crafts. The V-1020S can automatically clamp workpieces, eliminating the slow speed of manual turning, and complete complex shapes in a single pass, ensuring high efficiency and precise results.
Engineered with a robust frame, advanced CNC control system, and high-precision spindles, this lathe provides stable operation, repeatable accuracy, and long-term durability. Its user-friendly interface allows operators to quickly program and monitor turning operations, making it suitable for both small workshops and large-scale production environments.
With the V-1020S, manufacturers can achieve fast, accurate, and automated turning for a wide range of cylindrical wood products, improving productivity and maintaining consistent quality across all workpieces.
Technical Parameters
| Max Working Length | 1000 mm |
|---|---|
| Max Working Diameter | 200 mm |
| Working Accuracy | ±0.05 mm |
| Repeatability | 0.05 mm |
| Max Working Speed | 12 m/min |
| No-Load Speed | 15 m/min |
| Power Voltage | AC 380V ±15% |
| Air Pressure | 0.5 - 0.8 MPa |
| Servo System | Servo |
| Total Weight | 1100 KG |
| Machine Size (L×W×H) | 2800 × 1400 × 1500 mm |
Machine Configuration
Detailed configuration of the V-1020S CNC Turning Lathe, including main parts, brand, parameters, and photos.
| Main Parts | Brand | Parameter | Photo |
|---|---|---|---|

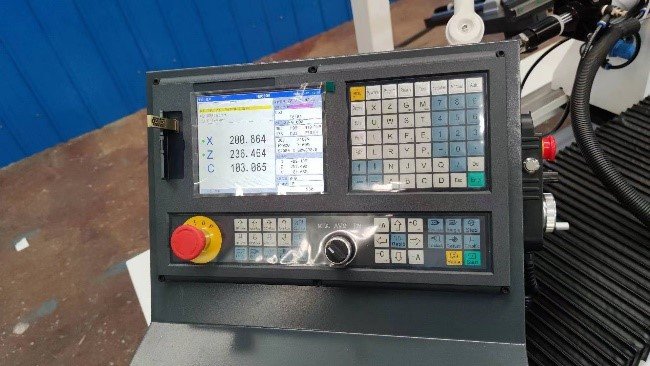

| System | SINCR | Absolute value, Customize dual kernel program, preprocessing path optimization, Trial machining of handwheel program |  |
| Rotation Axis | Asynchronous motor | Power 7.5KW, Speed 0-5600 rpm | |
| Turning Tool Holder Replacement | Customed | Three process tool changing for processing wood with large diameter differences, faster and more accurate speed | |

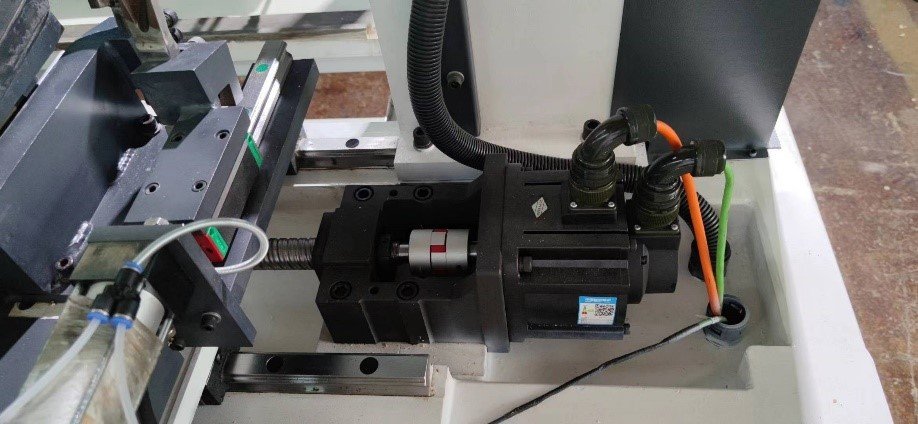

| Feed Motor | 1KW Inovance Servo Motor | China best brand |  |

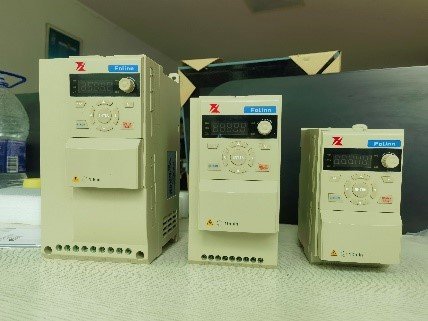

| Inverter | Fuling | 11KW |  |
| Linear Guide Rail | Taiwan HIWIN | High dustproof and high torsional resistance type | |
| Ball Screw | TBI 3220 | High speed heavy-duty type | |
| Lubrication System | 1.5L Auto Lubrication Pump | High pressure electronic oil pump |  |
| Automatic Feeding Rack | - | Square bars, rectangular bars, regular polygon bars, and round bars can be automatically loaded | |
| Spindle Box | - | Design of installation structure for impact-resistant spindle bearings |  |
| Dustproof Facilities | - | Two axis dust-proof, equipped with a vacuum hood |
