CO2 Laser Cut Engrave Machine for Acrylic Wood MDF Puzzles

Overview

The CO2 Laser Cut and Engrave Machine is a versatile solution designed for precision cutting and engraving of materials such as acrylic, wood, MDF, and more. It is especially ideal for creating intricate designs and custom shapes for puzzles and toys. This machine combines advanced CO2 laser technology with high cutting speed and precision, making it perfect for applications that require high-quality, detailed work. Also supports wifi connection.

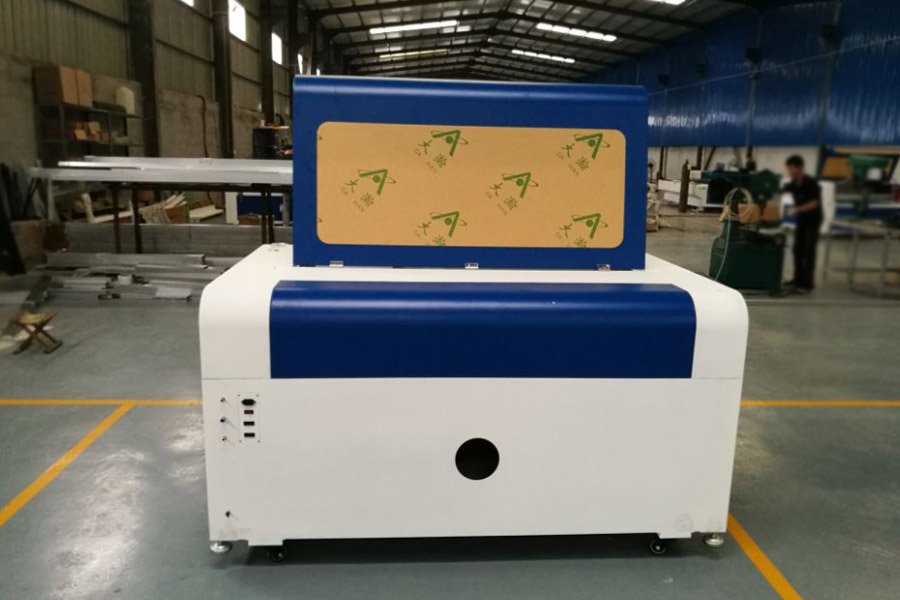

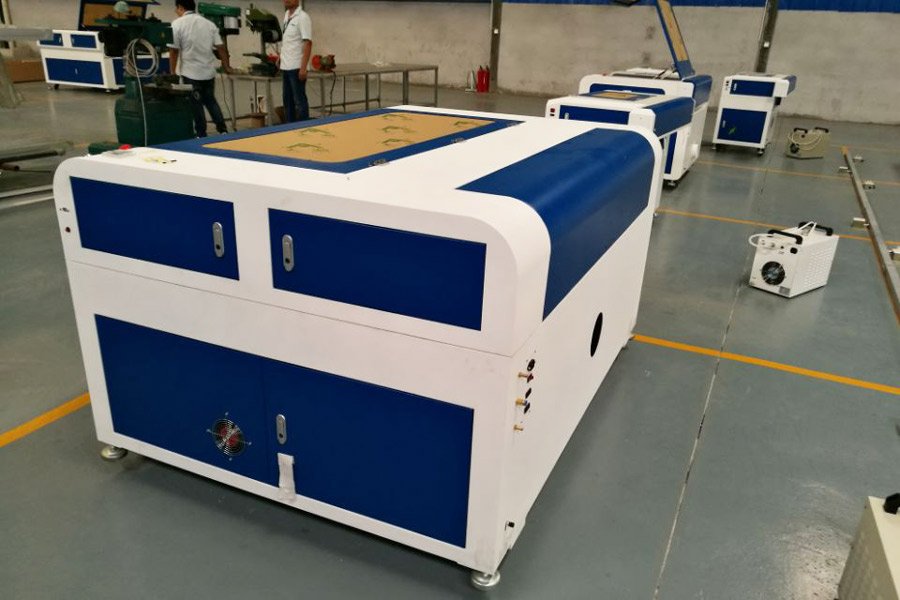

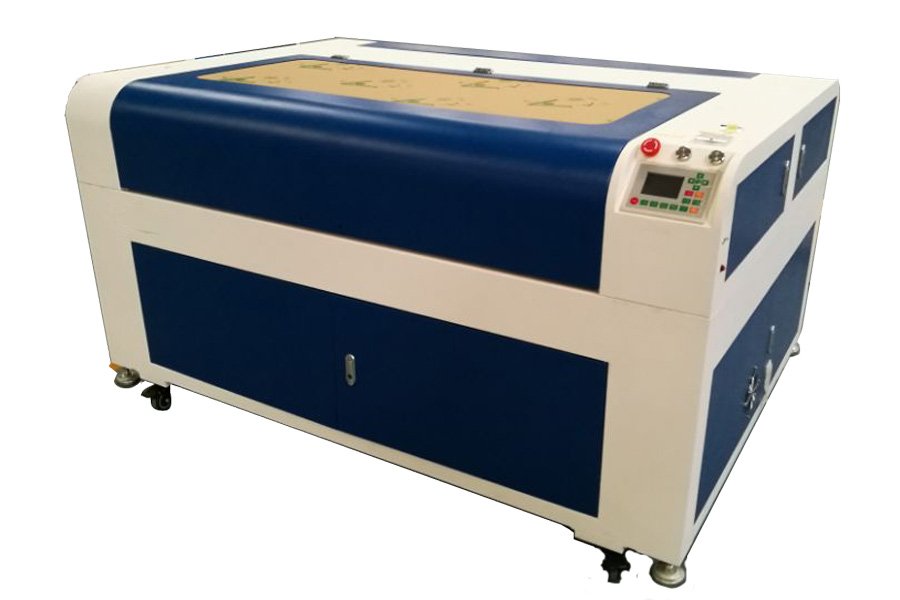

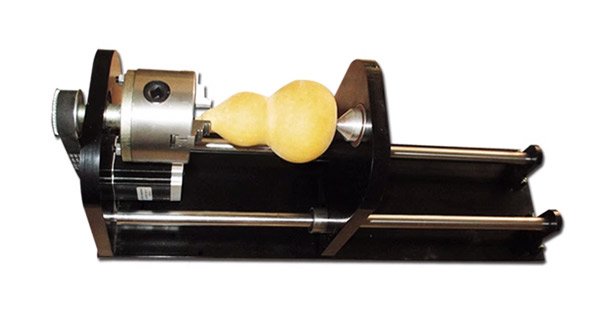

This CO2 laser machine has a working size of 130x90cm, making it a versatile option for businesses of all sizes, from small to medium to large shops. Additionally, it can be equipped with a rotary axis, allowing it to engrave and cut cylindrical products such as bottles and cups. It's Whether you're crafting custom puzzles or designing unique toys, this CO2 laser cutter ensures clean, accurate cuts and smooth finishes. It's widely used in industries like arts and crafts, educational products, and personalized gift-making, delivering professional results every time.

The machine is capable of handling a variety of materials and offers exceptional versatility, enabling users to produce both small-scale creative projects and larger industrial batches with ease. It is an essential tool for anyone looking to produce high-quality, custom products in the puzzle and toy industries.

Advanced Features

Multi-Material Compatibility

This CO2 Laser Cutting Machine is designed to handle a wide range of materials, making it a versatile solution for various industries. It can efficiently process materials such as acrylic, glass, leather, MDF, paper, plastic, plexiglass, plywood, rubber, stone, and wood. Whether you're working with delicate materials or thick substrates, this machine offers reliable performance for applications in hotels, garment shops, manufacturing plants, and more.

Advanced Control System

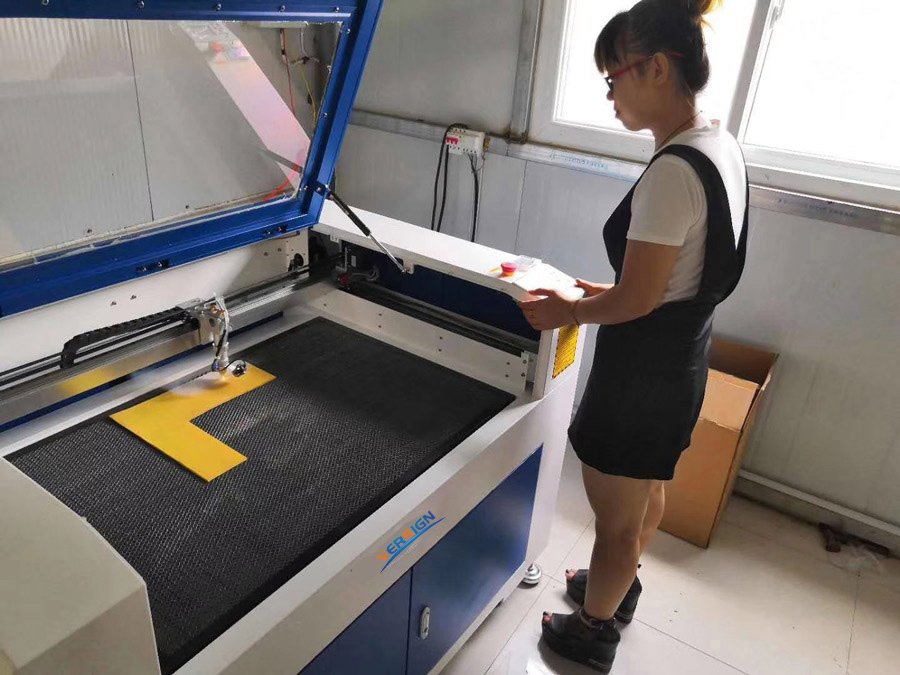

Equipped with a state-of-the-art Ruida controller, this machine ensures precise control over the cutting process. The user-friendly interface and intuitive controls streamline operations, enabling quick setup and minimal downtime. The advanced system allows for fine-tuning of cutting parameters to achieve high-quality results on a variety of materials.

High-Speed Cutting

With an impressive cutting speed of up to 500mm/sec, this machine is capable of efficiently processing materials of varying thicknesses. Depending on the laser power and material type, it can cut through materials up to 30mm thick, providing fast turnaround times without compromising on precision.

Customization Options

The CO2 Laser Cutting Machine offers customization options to meet the unique needs of your business. You can choose from a range of colors, including blue and white, and further customize the machine to suit your specific application requirements. This flexibility ensures that the machine aligns with your business branding and operational needs.

Comprehensive Warranty

We stand behind the quality of our products, offering a 1-year warranty on the machine and an 18-month warranty on core components. This includes a warranty on the CO2 laser tube, giving you peace of mind and confidence in your investment. Whether you're a small business or a large-scale operation, you can rely on the durability and long-term performance of this cutting-edge machine.

Details

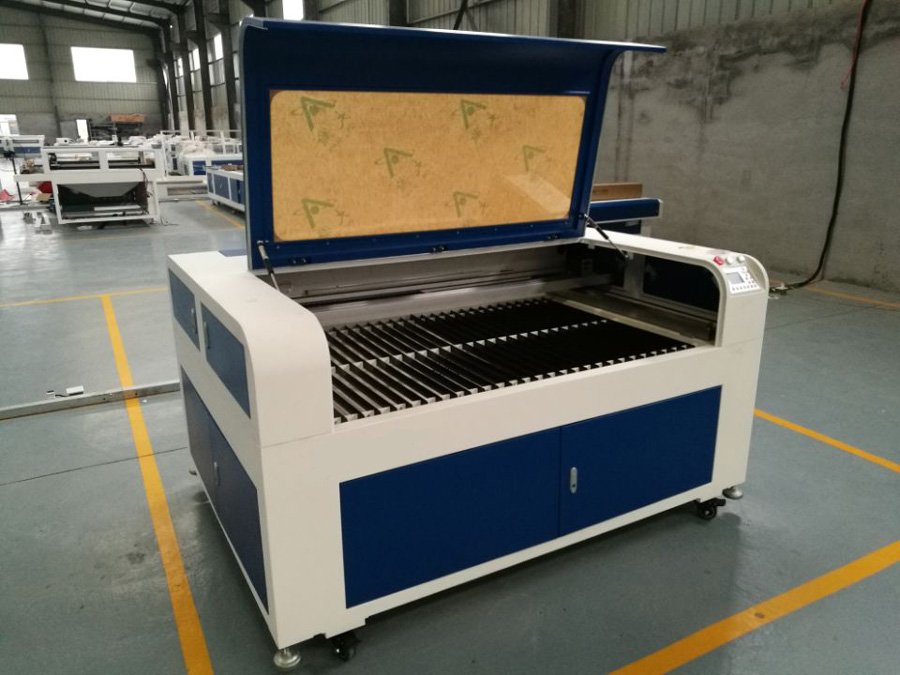

• Platform: The standard platform is a honeycomb table, with an optional blade table available for different processing needs.
• Optional Features: - Up-and-Down Moving Platform (Optional): Ideal for easier handling of materials and improving cutting flexibility.

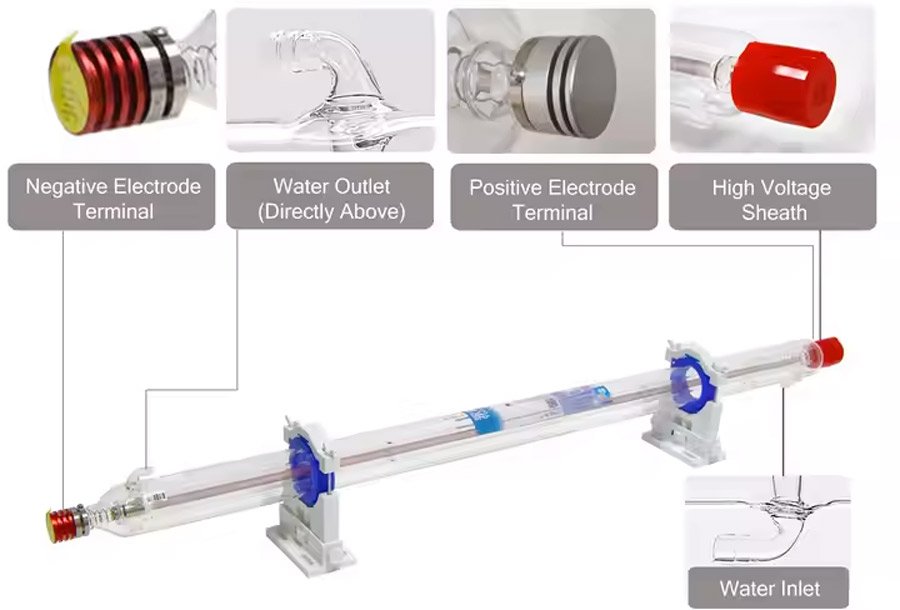

• Laser Tube: High-quality CO2 glass laser tubes from renowned brands like Yongli or Reci, offering excellent cutting precision, long service life, and reliable engraving performance.

• Reflectors: 45° mirror adjustment set for precise alignment and a three-point dimming blot for easier laser dimming control.
• Laser Head: The high-precision laser head, equipped with red light, ensures accurate and reliable cutting and engraving over long periods.
• Reduction Wheel: Equipped with a reduction wheel to provide a buffer effect, improving overall cutting accuracy.
• Cooling System: Water-cooled system with a water pump or S&A industrial water chiller to maintain optimal operating temperatures.
• Working Voltage: Standard: Single-phase 220V ± 10%, 50Hz (Optional: 380V ± 10%, 60Hz or 110V ± 10%, 60Hz).
• Transmission System: Linear guide rail and belt transmission system for smooth movement and precise cutting.

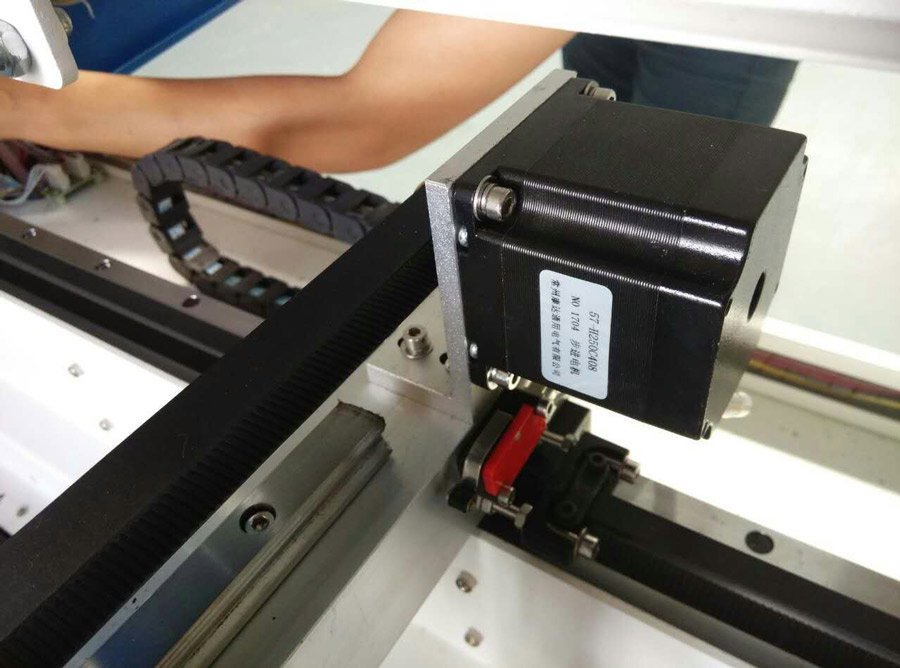

• Driving System: Stepper motors and drivers ensure accurate and responsive motion during operation. Max engraving speed is up to 1200mm/s（47 inch / s).

• Processing Materials: Suitable for a wide range of materials including acrylic, wood, MDF, plywood, glass, leather, fabric, stone, plastic, rubber, PVC, and more.

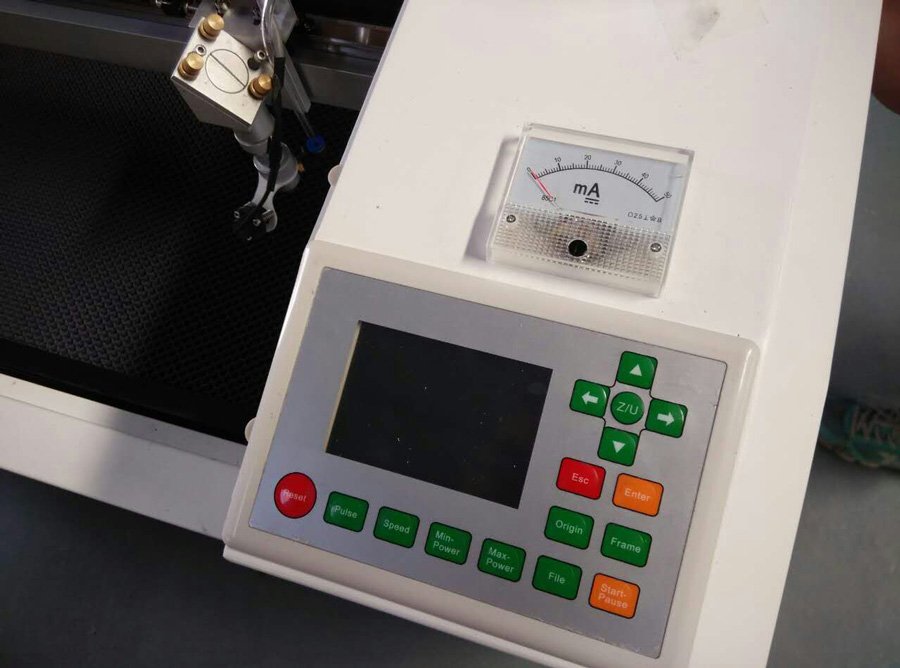

• Control System: RuiDa RDC6445G controller for precise and easy operation.

• Air Assist: Equipped with an air compressor for cleaner and more efficient cutting.
• Exhaust System: Features an exhaust fan to remove fumes and smoke for a clean working environment.
• Machine Color: Standard color is blue and white; customization options are available.
• Optional Functions: Includes features like Wi-Fi connectivity, rotary axis for engraving cylindrical objects, red dot pointer, auto-focus, motorized up-down table, and safety interlock.

• Software: RDWorks laser software for easy design and operation of cutting tasks.
• Laser Power: Available in multiple power options: 80W, 100W, 130W, 150W, and 180W.
• Working Area: Standard working area of 900mm x 1300mm (customizable sizes available).

CO2 Laser Cutting Thickness

Material	Thickness
Acrylic	30mm
MDF	15mm
Leather	10mm
Normal Wood	15mm

Please note: When you cut acrylic, the air flow should be small or side flowing. This can make the cutting edge smooth, and the air flow at the bottom of acrylic can help to avoid fire.

Different materials, when cut with different laser tube power ratings, will have varying cutting speeds and thicknesses. Please refer to the table below for more detailed information.

Applications of CO2 Laser Cutting Machine

Applicable Industries

This CO2 laser cutting and engraving machine is highly versatile and is widely used across various industries. Key applications include:

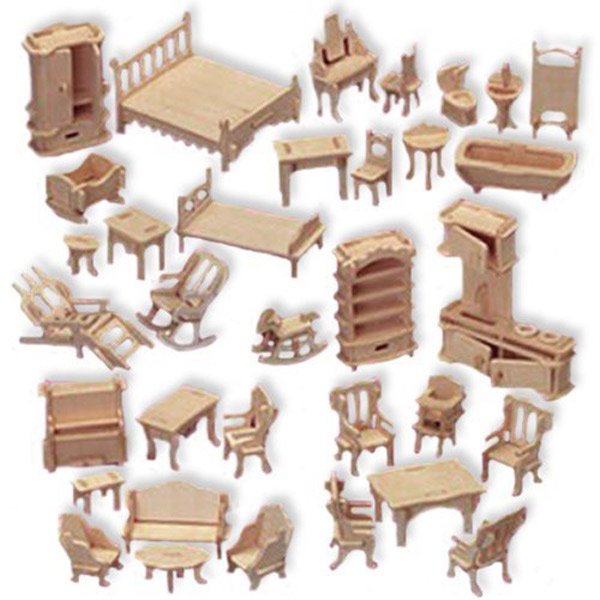

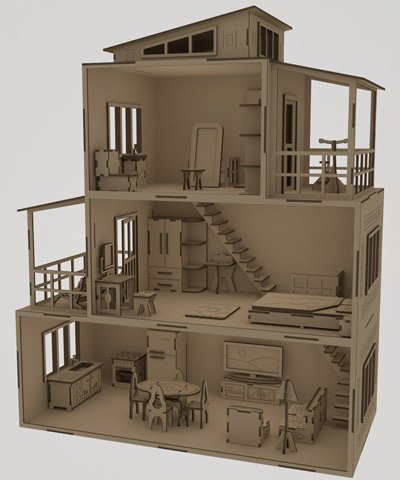

• Puzzles and Toys: Ideal for cutting and engraving intricate designs for wooden puzzles, educational toys, and custom toy parts, offering precision and detail.

• Advertising and Decoration: Used for creating custom signage, logos, and decorative pieces in materials like acrylic, MDF, and wood.

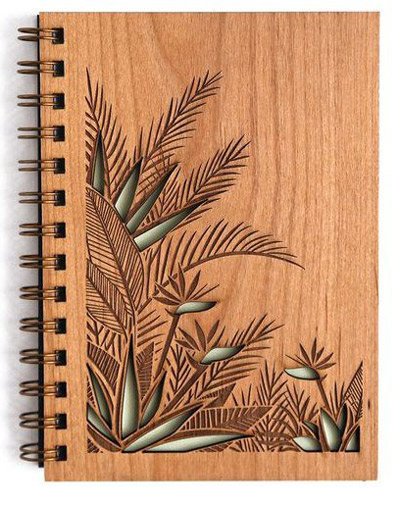

• Arts and Crafts: Perfect for crafting intricate designs on various non-metallic materials, enabling artists to create high-quality, detailed pieces.

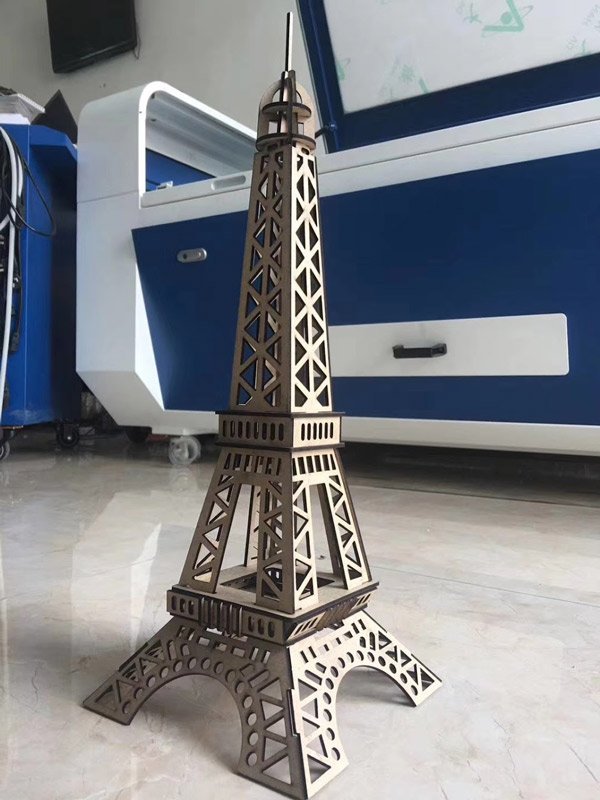

• Model Making: Commonly used in the production of scale models, including architectural models, aviation, and navigation models.
• Consumer Goods: Used for cutting and engraving materials used in everyday items like lampshades, photo frames, and small household decorations.
• Fabric and Leather Cutting: A powerful tool for precision cutting and engraving fabric, leather, and other textiles in the garment and fashion industry.
• Electronics: Suitable for engraving and cutting circuit boards, panels, and housings for electronic products.

Working Materials

This machine is capable of processing a wide variety of non-metallic materials, including:

• Wood & MDF: Ideal for crafting toys, puzzles, and models from wood, MDF, and plywood.
• Acrylic & Plexiglass: Commonly used in the creation of signs, displays, and decorative items.
• Leather & Fabric: Perfect for engraving and cutting leather, fabrics, and other textiles.
• Paper & Cardboard: Can cut intricate designs for paper crafts, greeting cards, packaging, and more.
• Bamboo & Natural Materials: Works with natural materials like bamboo, coconut shells, and even ox horns for unique, custom designs.
• Plastic: Capable of cutting a variety of plastics, including ABS boards, PVC, and acrylic sheets, for applications ranging from packaging to signage.

This CO2 laser cutting machine’s flexibility and precision make it the perfect tool for crafting detailed, custom designs across a wide range of materials, including those used in puzzles, toys, and many other creative industries.
