CNC Solid Wood Cutting Machine

Overview

1. Automatic processing operation and stable quality, improving efficiency exponentially and laying the groundwork for lathe processing operations, which will smooth and speed up the processing line.
2. Equipped with a Germany Numerical Control system, offering high precision and stable performance.
3. Advanced CNC system, simple and easy to control. Technicians with only basic CAD knowledge can operate the machine easily without other software applications.
4. Strong cylinder fixtures; the clamping device is reliable with a wide clamping range, allowing synchronous sawing of multi-layer sheets.

Model	V1500H	V2000H	V2500H
Machine Size (mm)	2100 × 2600 × 1800	2600 × 2600 × 1800	3100 × 2600 × 1800
Max Working Length (mm)	1500	2000	2500
Max Working Thickness (mm)	10–150	10–150	10–150
Empty Line Speed (mm/min)	10000	10000	10000
Max Working Speed (mm/min)	8000	8000	8000
Spindle Power	11.2 KW	11.2 KW	11.2 KW
Equipment Power	14.5 KW	14.5 KW	14.5 KW
Spindle Speed	18000 rpm	18000 rpm	18000 rpm
Working Accuracy (mm)	0.1	0.1	0.1
Max Working Diameter (mm)	500	500	500

Key components and accessories details of the CNC Solid Wood Cutting Machine.

Main Parts	Accessory Details
System	Customed solid cutting system
Servo	INVT servo
Guide Rail	Taiwan HIWIN brand
Inverter	Yidian Electric 15KW
Lead Screw	Taiwan original TBI
Reducer	Japan Shimpo reducer
Body	Stronger heavy body

Take a closer look at the CNC Solid Wood Cutting Machine in action, showcasing precision and robust construction.

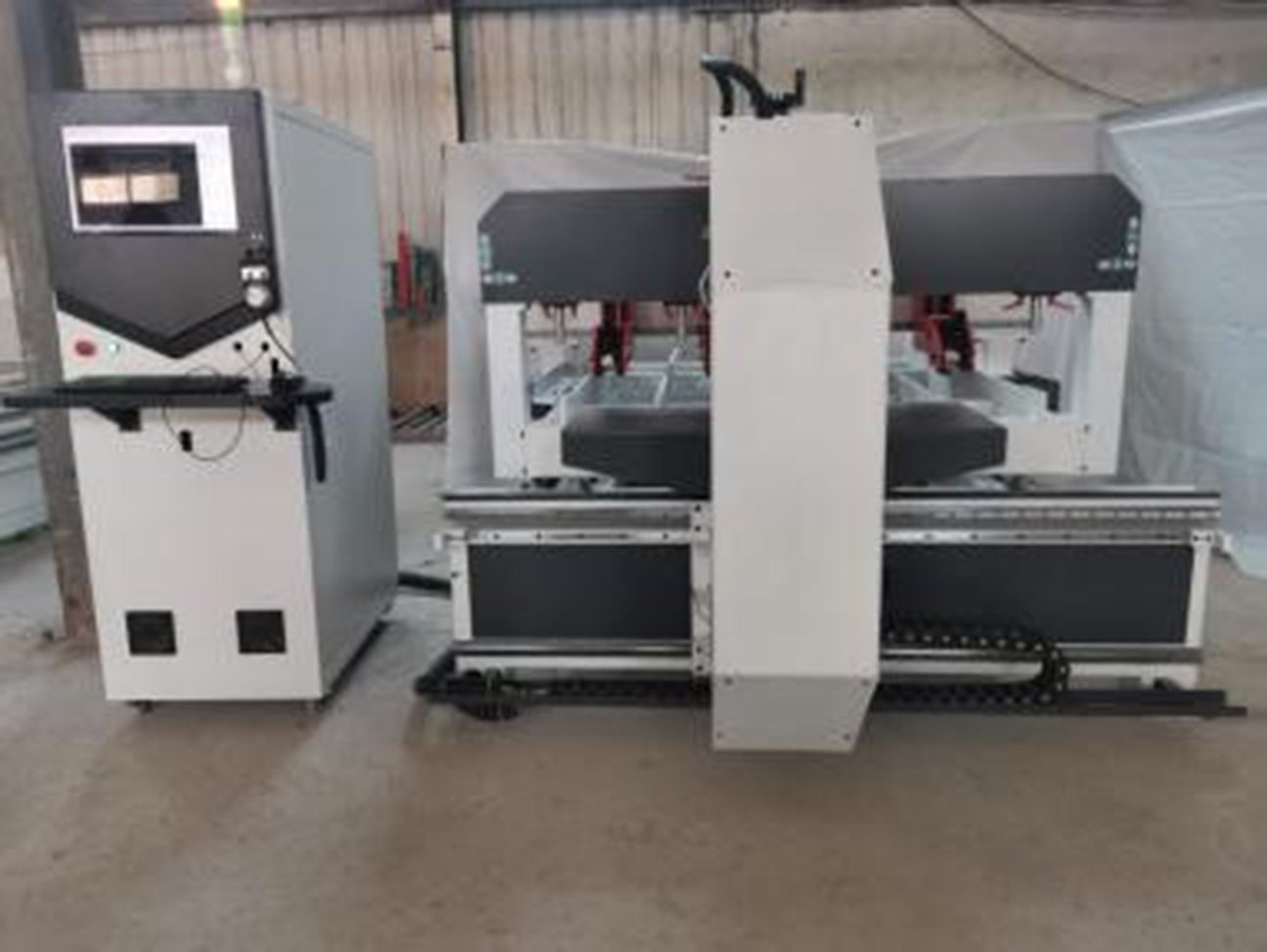

Front View

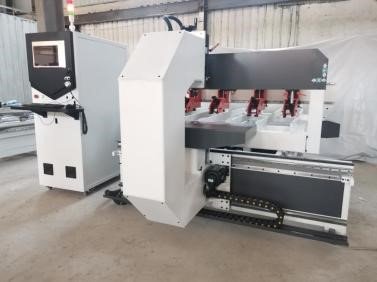

Side View

Working Area

Specifications of cutting tools for different workpiece thicknesses.

Total Length (mm)	Blade Length (mm)	Shank Diameter (mm)	Working Thickness (mm)
120	60	4	0–60
150	80	6	0–80
200	130	8	0–130
230	155	8	0–150
