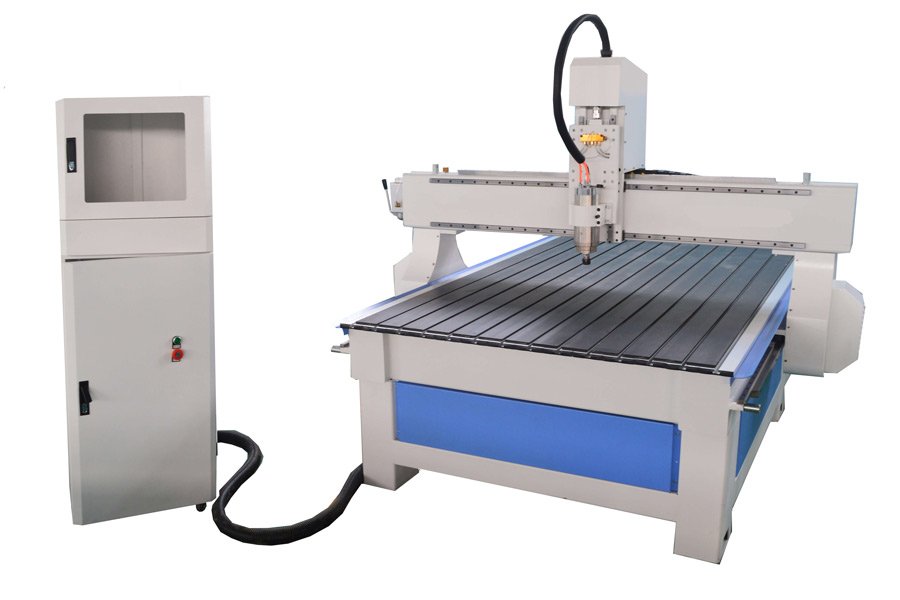

Affordable Entry Level V-R1325 4x8 ft Wood CNC Router for Beginners

Overview

This Affordable Entry-Level V-FR1325 4x8 ft Wood CNC Router for Beginners is one of our earliest classic entry-level models, featuring high stability, extremely simple operation, and minimal maintenance. After years of market validation, it has proven excellent stability and durability. The design focus is on a very simple operation and ultra-low maintenance requirements, making it particularly suitable for small factories and startups that want to invest efficiently in production but have limited budgets. With a processing size of 1300x2500mm (4x8 ft), it meets the needs for processing large-size materials. This size range is very suitable for making large panel products, such as furniture boards, cabinet doors, and advertising signs. Even for larger materials, it can be processed in one go, without splicing or segmented processing, greatly improving production efficiency. Although the price of this Entry-Level V-FR1325 4x8 ft Wood CNC Router is affordable, it does not mean a compromise on quality. On the contrary, it is a high-performance, fast, and powerful engraving machine that can meet various demanding processing requirements. The main reason we can achieve this price is due to the adoption of a mature and reliable design and high-quality raw material supply strategy.

Key Factors for Premium Design and High Cost-Effectiveness

1. Universal Components: Using industry-standard universal components ensures the machine’s compatibility and durability, while also making maintenance and replacement convenient. This not only reduces the maintenance costs for customers but also ensures the long-term stable operation of the equipment.

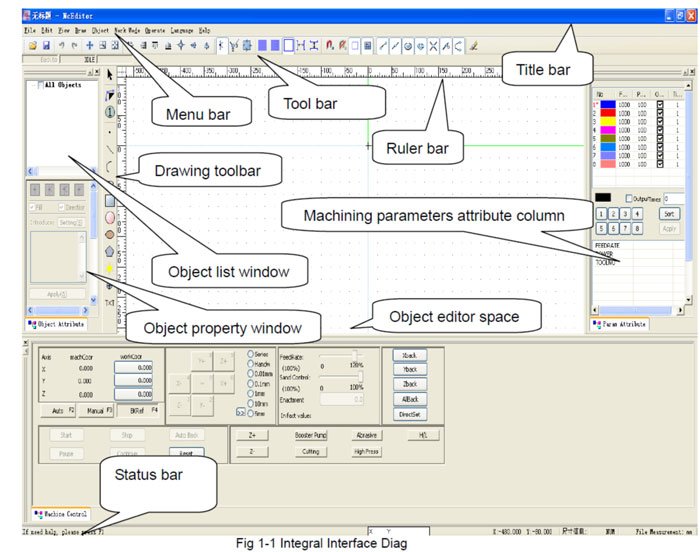

2. Mature NCSTUDIO Control System: We selected the stable NCSTUDIO system, which not only simplifies the operation process but also improves processing efficiency. This system has been validated in the market for many years and is widely trusted by users for its efficient, smooth, and precise control, greatly enhancing the user experience. NCStudio uses a Windows-based interface, making it very simple and intuitive to operate, avoiding the inconvenience of learning a new system.

3. Stable Supply Chain: We have long-term cooperation with high-quality component suppliers to ensure stable quality of raw materials and efficient supply chain operations. This supply chain management model helps us reduce production and procurement costs while maintaining equipment quality, making the product available at a more competitive price.

Advanced Features

1. Fast Processing: The combination of a high-power spindle and an efficient drive system enables fast cutting, suitable for various complex processing tasks and helps customers improve production efficiency.
2. High Reliability: We strictly control design and production to ensure that each machine undergoes high-standard quality inspection.
3. Long-Lasting Design: The high-quality components and reasonable structural layout of the Entry-Level V-FR1325 4x8 ft Wood CNC Router ensure that it maintains excellent processing accuracy and stability even under long-term high loads.

4. One-Time Shaping: Capable of accommodating large material sizes, reducing the hassle of multiple positioning and repeated processing, ensuring an efficient and precise production process.
5. Wide Application: Suitable for processing large wood boards, acrylic, MDF, PVC, and other materials, applicable to industries such as furniture manufacturing, woodworking decoration, advertising production, and art carving. It can process two wooden doors simultaneously and cut sheets. The Z-axis stroke of 200mm allows processing of solid wood and other thick materials.
6. Saves Time and Cost: The large processing table can significantly reduce processes and production time, improve material utilization, and is suitable for batch processing.
7. Low Maintenance: With a reliable, simple design, complexity is reduced. The lubrication system makes the machine run more smoothly and reduces machine failures.
8. Very Cost-Effective: It is recommended to purchase several at once.

9. Low Maintenance Requirement: This Entry-Level V-FR1325 4x8 ft Wood CNC Router uses high-quality parts and a simplified mechanical structure, reducing the use of complex components, resulting in low maintenance frequency and saving on subsequent costs. After multiple upgrades and optimizations, this router has been widely recognized by many users for its durability and low failure rate. Many customers have reported that this machine not only improves production efficiency but also significantly reduces operating costs, making it a very worthwhile investment.
10. T-slot Platform: Capable of securely holding materials of various shapes.
11. Energy Efficient.

Details

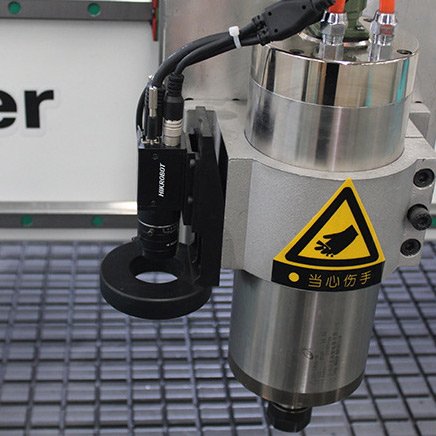

1. Spindle
   •
     Default 3.5KW water-cooled spindle suitable for most cutting and engraving tasks, delivering strong power. Optional 2.2KW, 5KW, and 9KW spindles are available.
   • Features: Water-cooled for stability, low vibration, efficient heat dissipation, and allows continuous long-term operation.
   • Speed: 0-24,000 RPM
   • Cooling: Water cooling
   • Bearing: 4 pieces, P4 grade, high-running accuracy, high speed
   • Drive: Variable Frequency Drive (VFD or inverter), with a maximum frequency of 400Hz

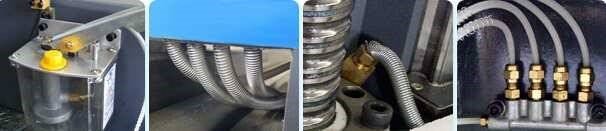

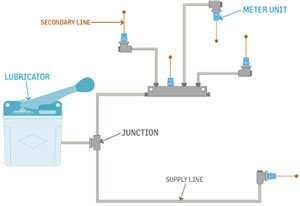

2. Manual Lubrication System
   • Lubrication is essential for mechanical parts, including gears, racks, ball screws, runner blocks, and bearings. This router includes a one-push lubrication system that ensures every component is properly lubricated.
   • Recommendation: Use regular vehicle engine oil. Simply refill the oil tank and push the pump once a week to ensure thorough lubrication of all parts.

3. Square Rails
   • Equipped with a Linear Guide Rail in a Twin Helical Structure with Roller Bearing Sliders, featuring two sliders on each rail for enhanced stability and precision.
4. Motor and Driver
   • High-torque stepper motor, 1.8-degree with rated torque of 3.5 N-m (newton meter).

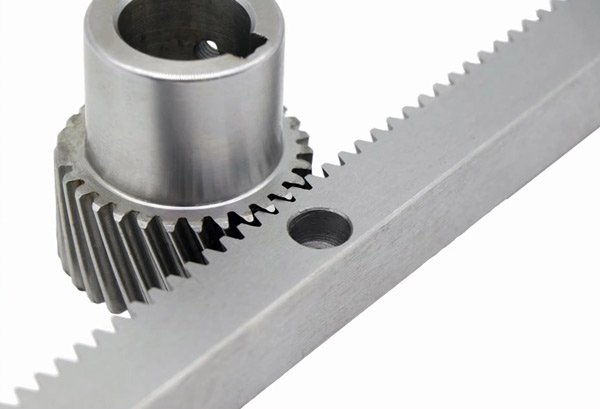

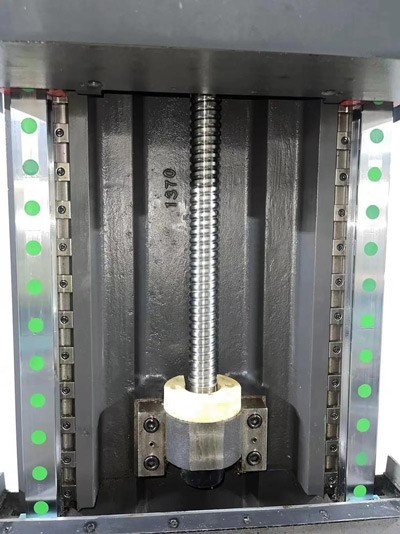

   • Configuration includes 1 stepper motor on the parallel rack and pinion, 2 stepper motors (one on each side of the rack), and 1 stepper motor on the ball screw.

   • All ball screws and rails are subject to strict quality control. With appropriate lubrication and care, these parts are designed to function smoothly over an extended lifespan.

5. T-Slot Worktable with PVC Cover
   • Design: The T-slot design enables flexible adjustment of clamp positions, allowing secure fixture of materials in various sizes and shapes.
   • PVC Cover: High-density PVC cover on the table surface protects it, minimizes vibration, and enhances stability and precision. PVC is wear-resistant and non-slip, ensuring materials stay in place during processing.
   • Clamp System: Material is fixed using clamps, suitable for thicker or specially shaped materials. Includes 10 sets of clamps for flexible positioning and convenient operation.
   • User-Friendly: No vacuum pump is required, making it quick and easy to use—ideal for most factories and workshops.
6. Machine Frame Structure
   • Built with an 8mm thick square tube welded steel frame structure.
   • Heat Treatment: High-temperature tempering treatment for the T-type machine bed and gantry, resulting in high rigidity and better load-bearing capacity.
7. Intelligent Table Protection
   • Intelligent protection system prevents table damage due to incorrect operations or if the design’s working area exceeds the actual working area, thereby preventing potential damage or accidents.

Additional Options (Extra Cost)

For enhanced performance and functionality, the following options are available at an additional cost. These options offer significant benefits, depending on your specific requirements:

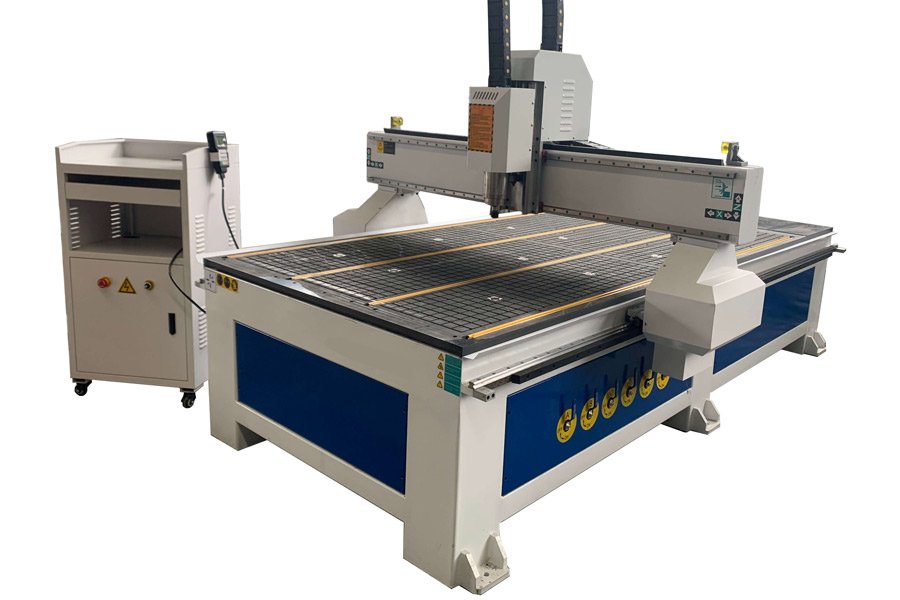

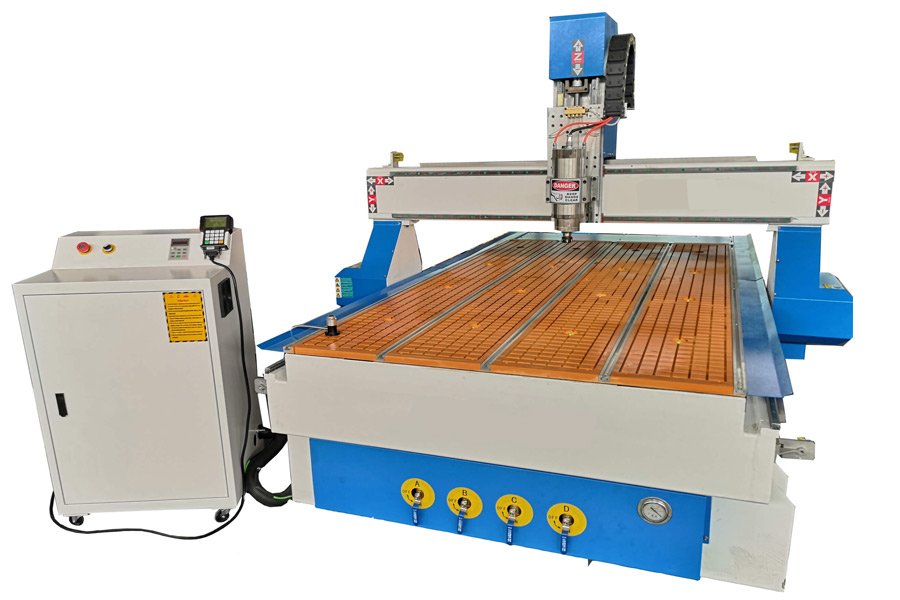

• 1. Vacuum Table

  • Facilitates material fixation during cutting and engraving, ensuring stability and precision.
  • Recommended for users dealing with materials that require secure placement during processing.
  • Additional cost involved for this feature.

• 2. Automatic Tool Changer (ATC)

  • Enhances machining efficiency by automatically changing tools during the cutting process.
  • Ideal for operations requiring multiple tools for different tasks, reducing manual intervention.
  • This option adds to the cost but increases overall productivity and reduces downtime.

• 3. Servo Motor Drive System

  • Provides higher precision, speed, and reliability compared to standard stepper motors.
  • Best suited for applications requiring superior accuracy and repeatability.
  • While offering superior performance, this system comes at a higher cost.

• 4. DSP or MACH3 Control System

  • Alternative control systems that offer various features and flexibility.
  • Both DSP and MACH3 systems are known for their ease of use and extensive compatibility with a wide range of CNC routers.
  • There is an additional cost for upgrading to these advanced control systems.

Parameters

Specification	Details
Model	V-R1325
Working Area	1300(X) * 2500(Y) * 200(Z) mm(4x8ft)
Repeatability (X/Y/Z) (mm)	0.03 mm
Machine Structure	Welded steel tube, cast iron vertical shafts and steel gantry
Table Surface	Aluminum T-slot table with PVC or vacuum pump
Spindle	3.5KW water or air cooling spindle
Spindle Rotating Speed	0-24,000 RPM
Collet Size	ER20
Guide Rail	Taiwan Hiwin linear square guide rail
Driving Method	X, Y axis by helical gear rack, Z axis by TBI ball screw
Motors and Drivers	Stepper motor 450B and Leadshine drivers MA860
Control System	NCStudio control system
Inverter	Fuling inverter
Standard Software	ArtCAM
Working Voltage	220V/380V, Single phase / 3 phases, 50-60Hz
Dimension	3200mm x 1800mm x 1800mm
Weight	1600kg

Note: These are the default machine specifications. The machine is customizable, and we continually optimize the design. Specifications are for reference only and may change.
